Home Ch // Stainless steel // Railing construction // Pins & brackets // Bracket // with 2 threads // Bracket Ø 12mm, 90° bent, AISI304

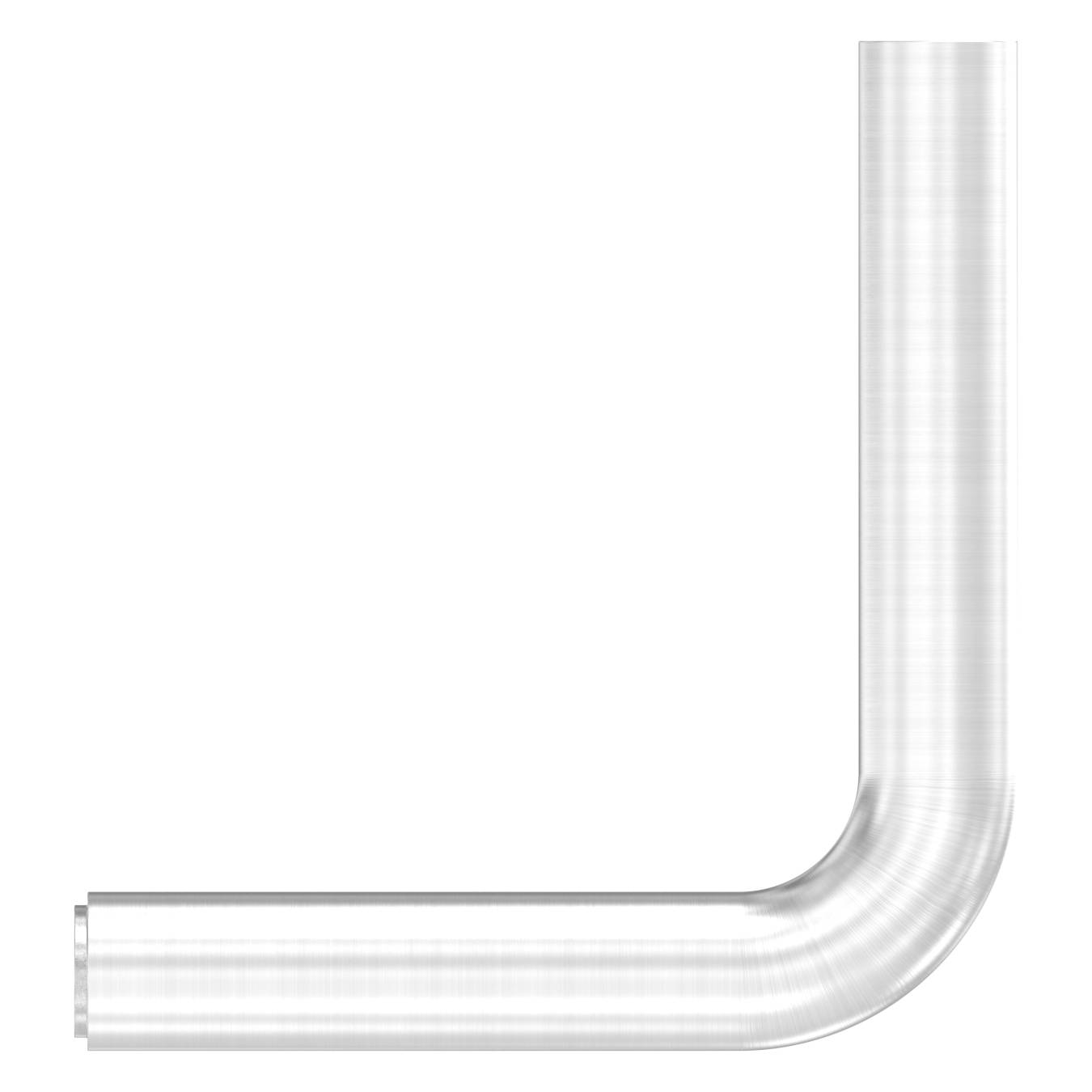

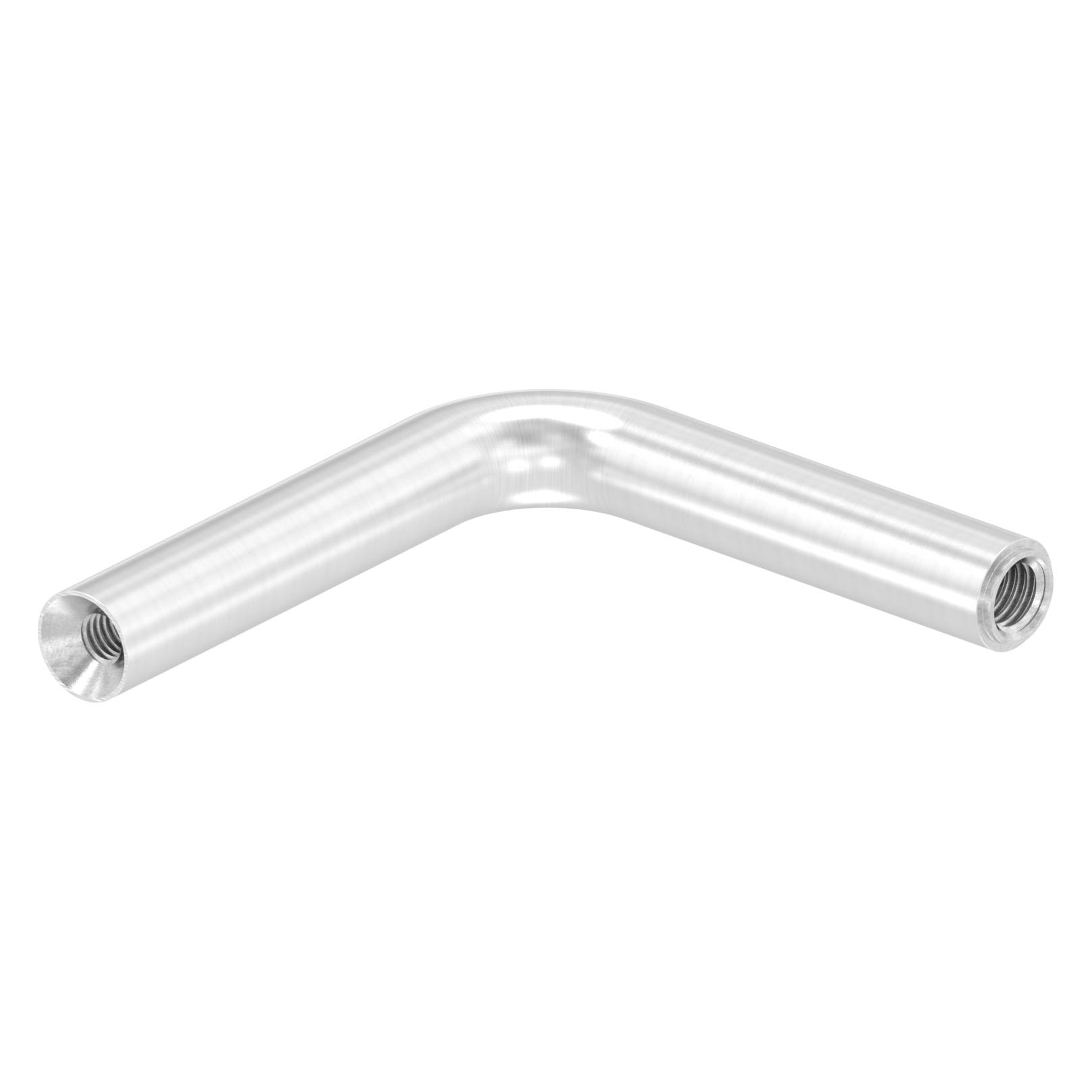

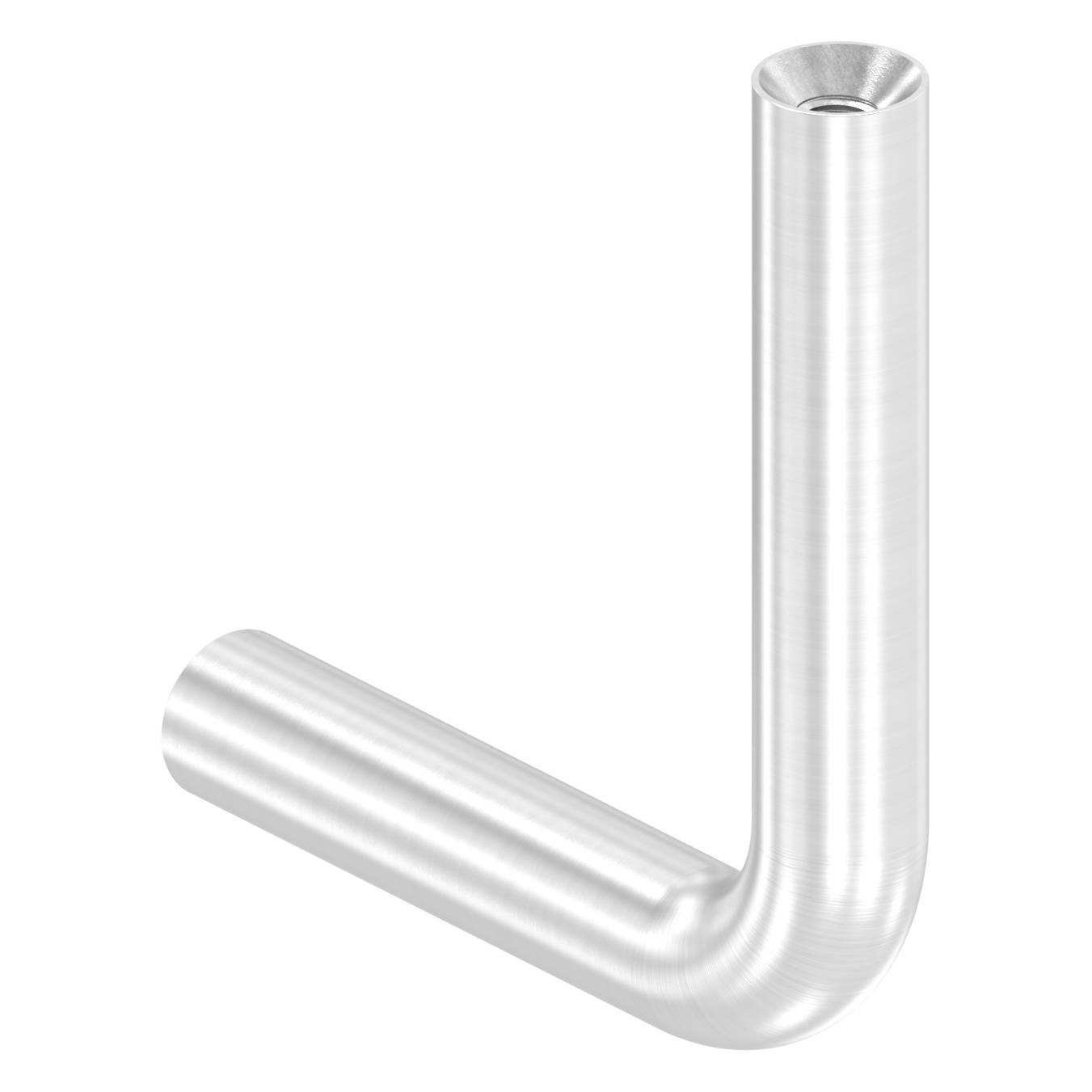

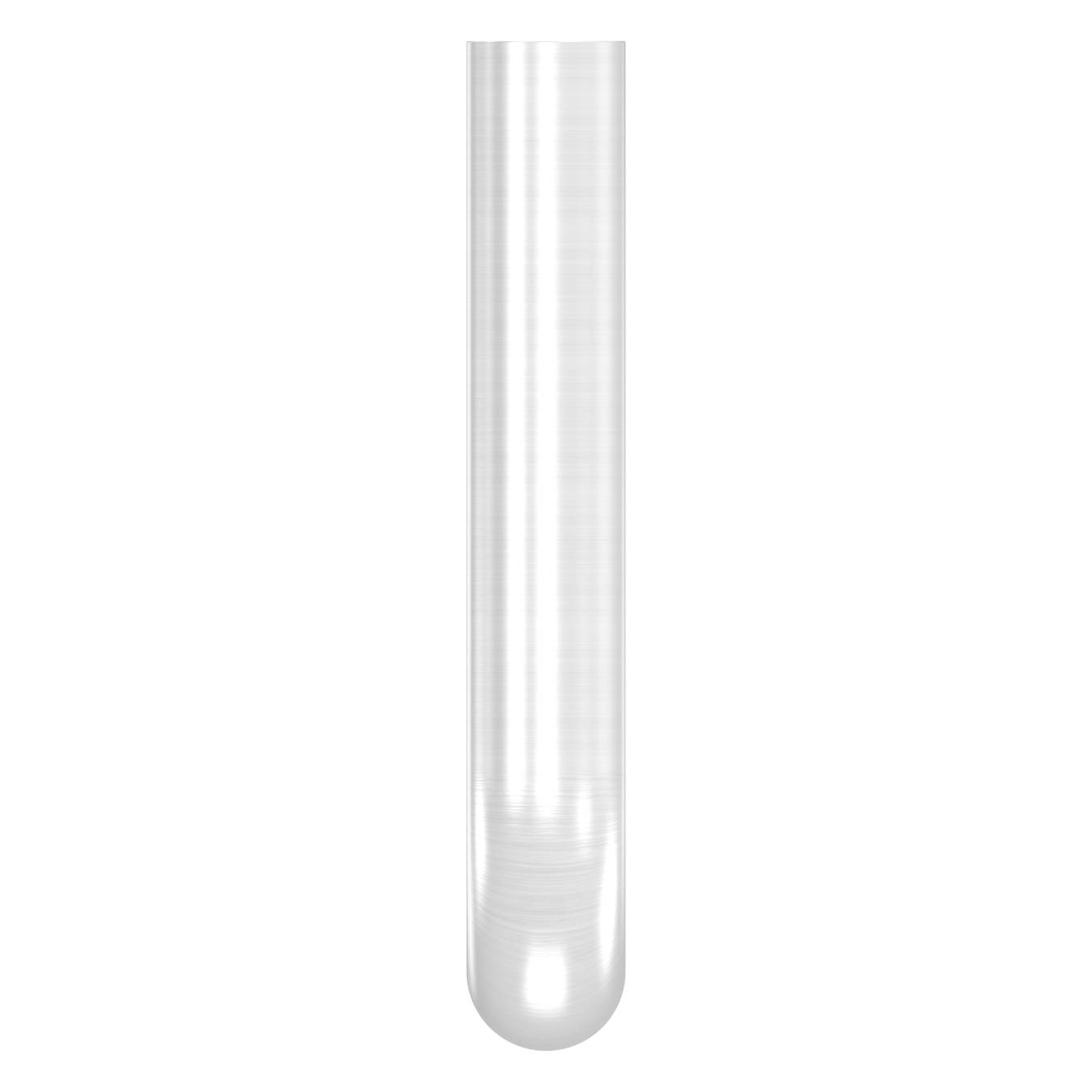

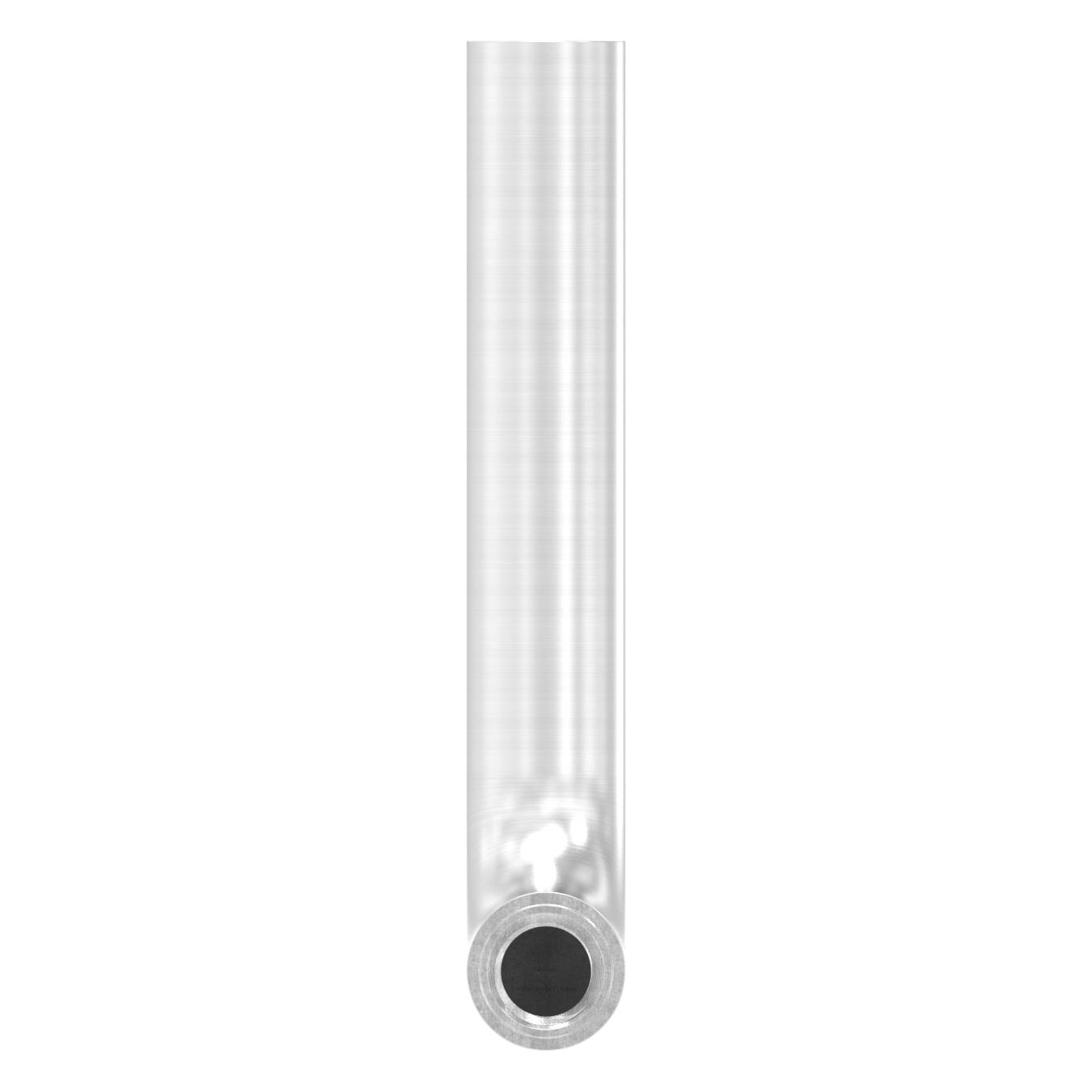

Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304
Bracket Ø 12mm, 90° bent, AISI304

Bracket Ø 12mm, 90° bent, AISI304

Art-Nr.50245-240-M8-DF|In stock·Delivery by21.Sep.
Product description

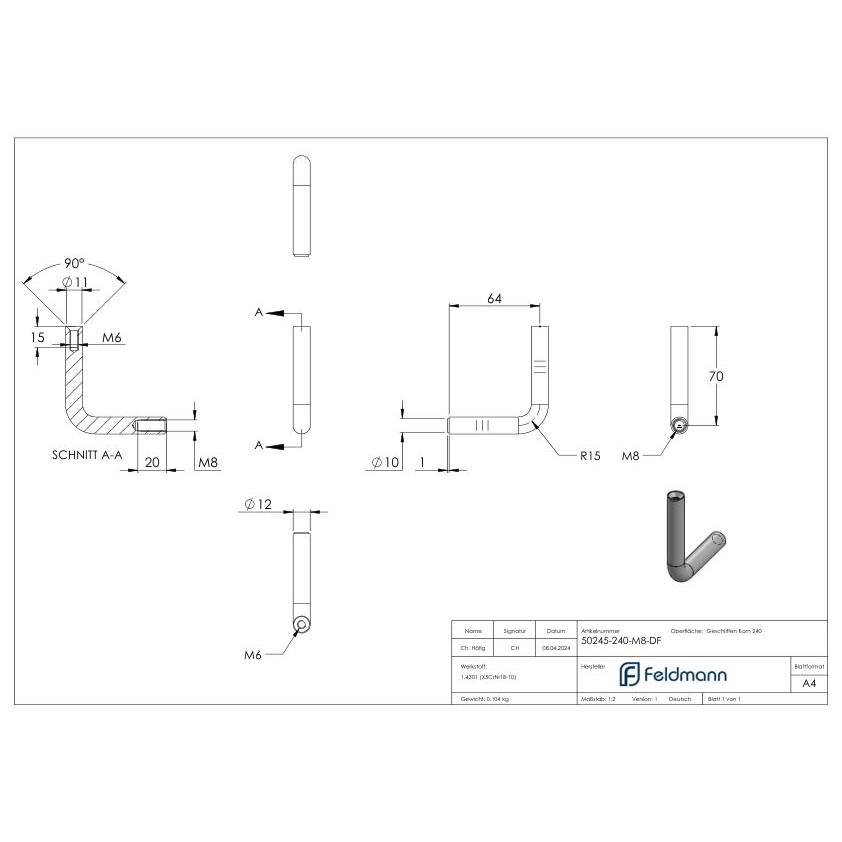

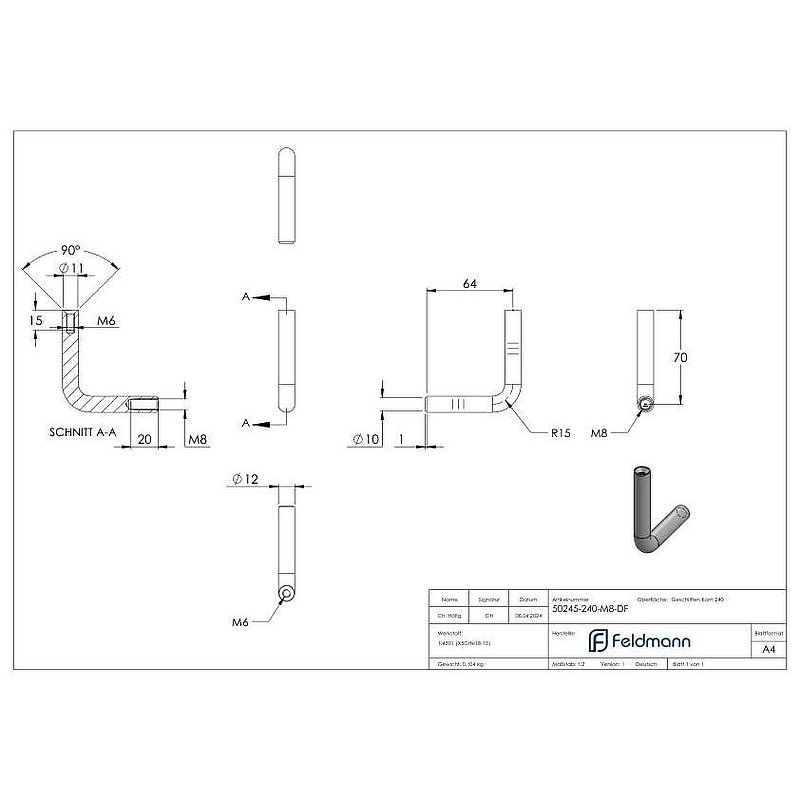

Bracket Ø 12mm suitable for Drehfix, shank length: 65x70mm, bent 90°, with internal thread M8x20 and M6x15, AISI304

Article number50245-240-M8-DF
Weight in Kg0.107
Length x Width x Height in mm1010 x 420 x 100
UnitPiece
Minimum Purchase1 Piece
Material
V2A (1.4301)
Pin diameter
12mm
Joint
nein
Thread
mit Innengewinde M6, mit Innengewinde M8
