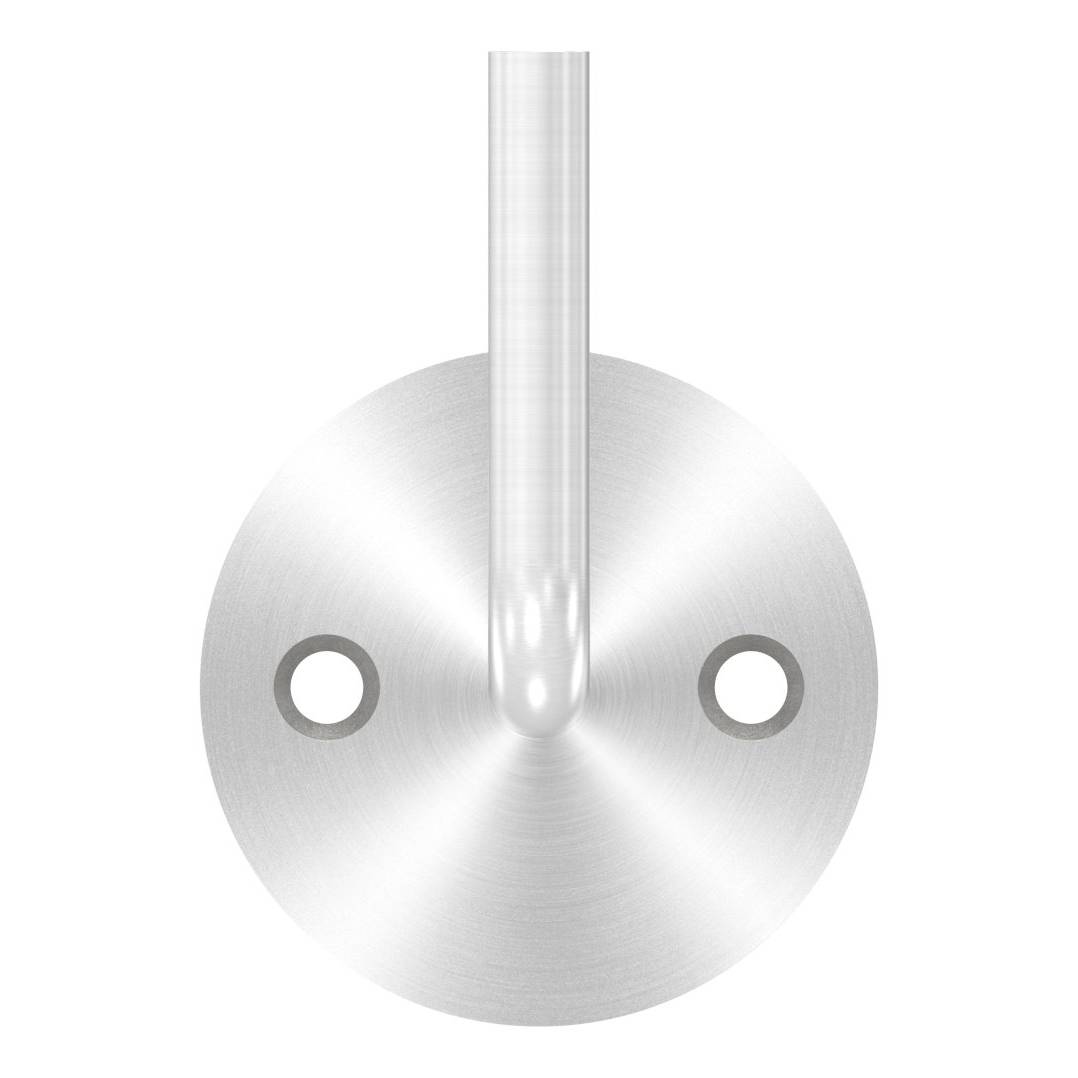

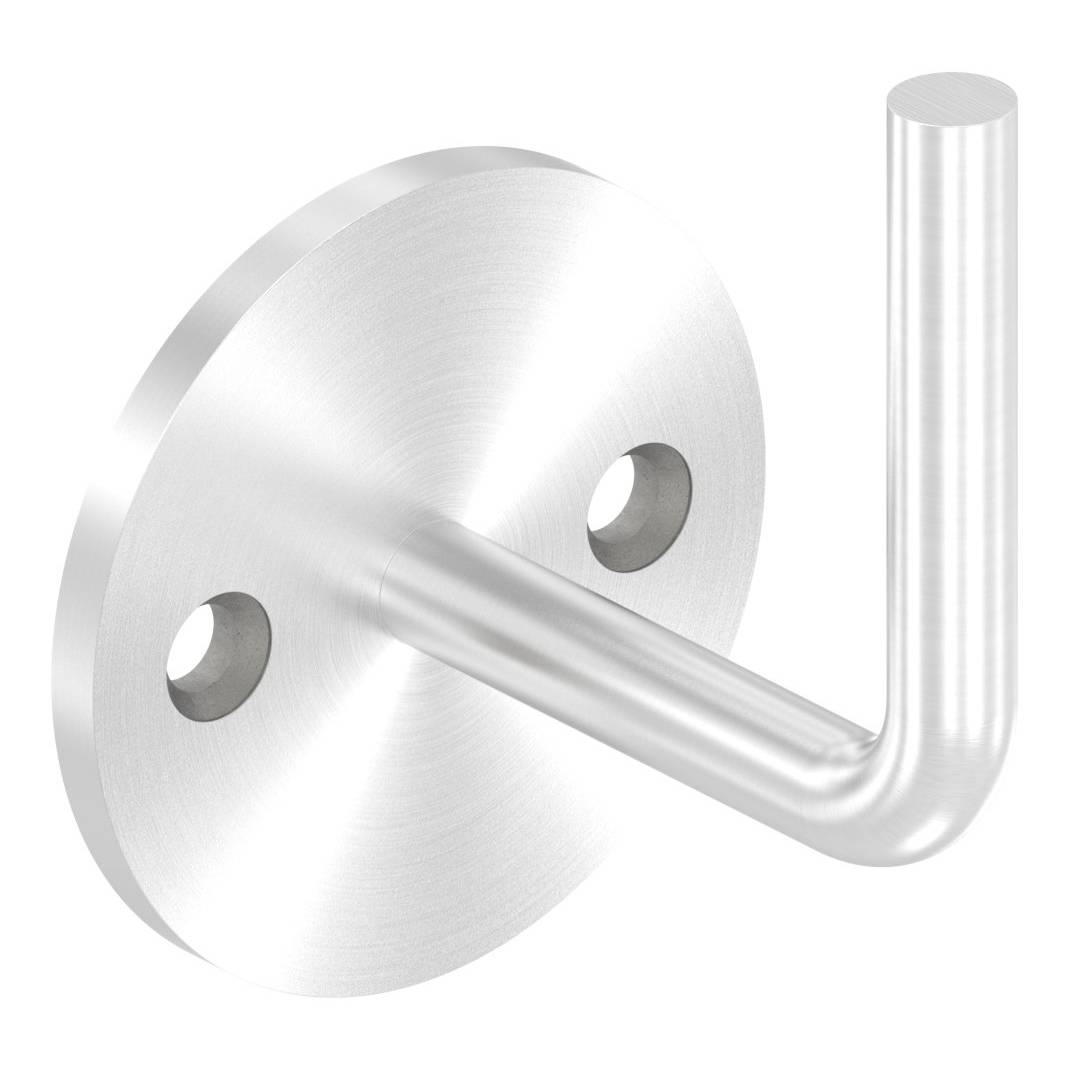

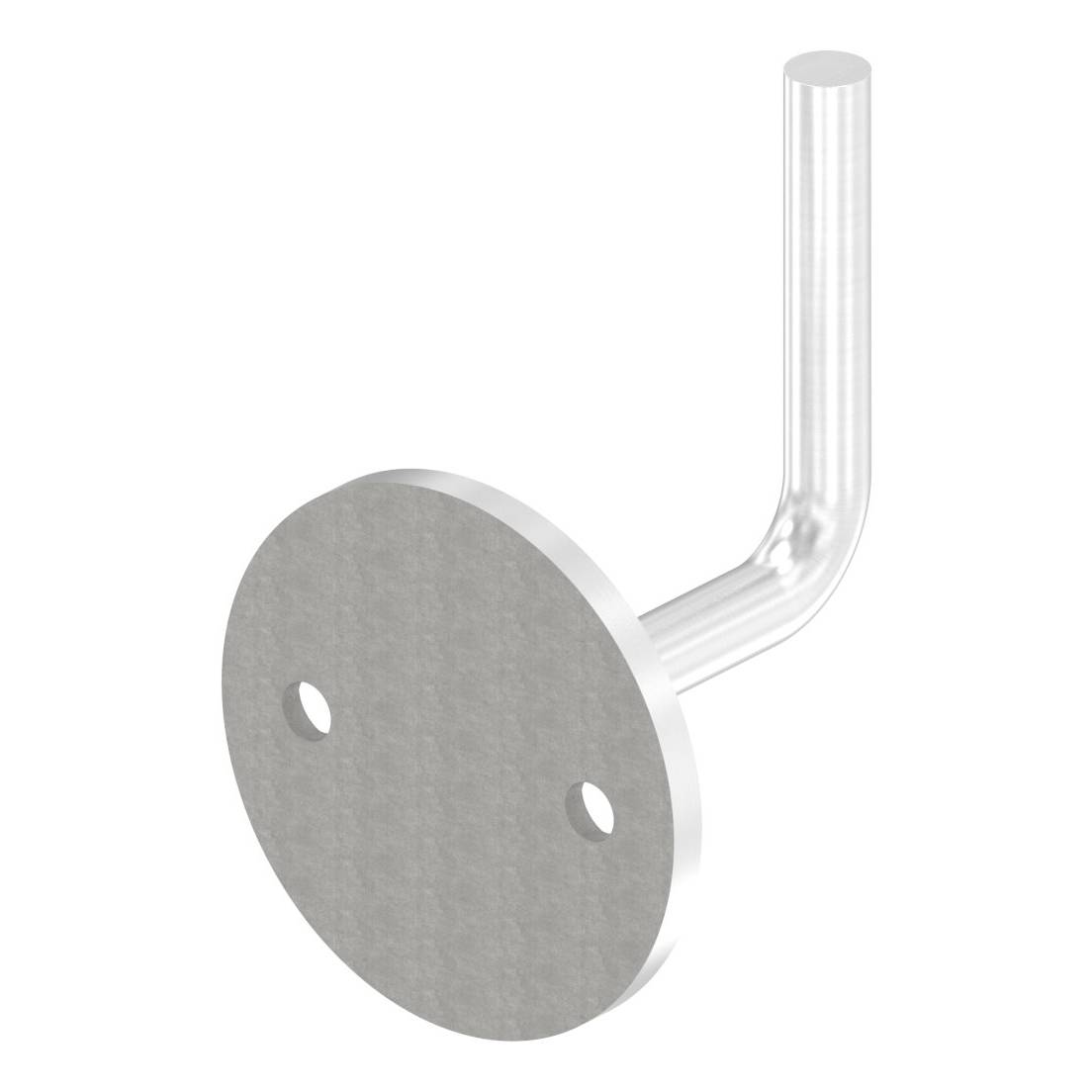

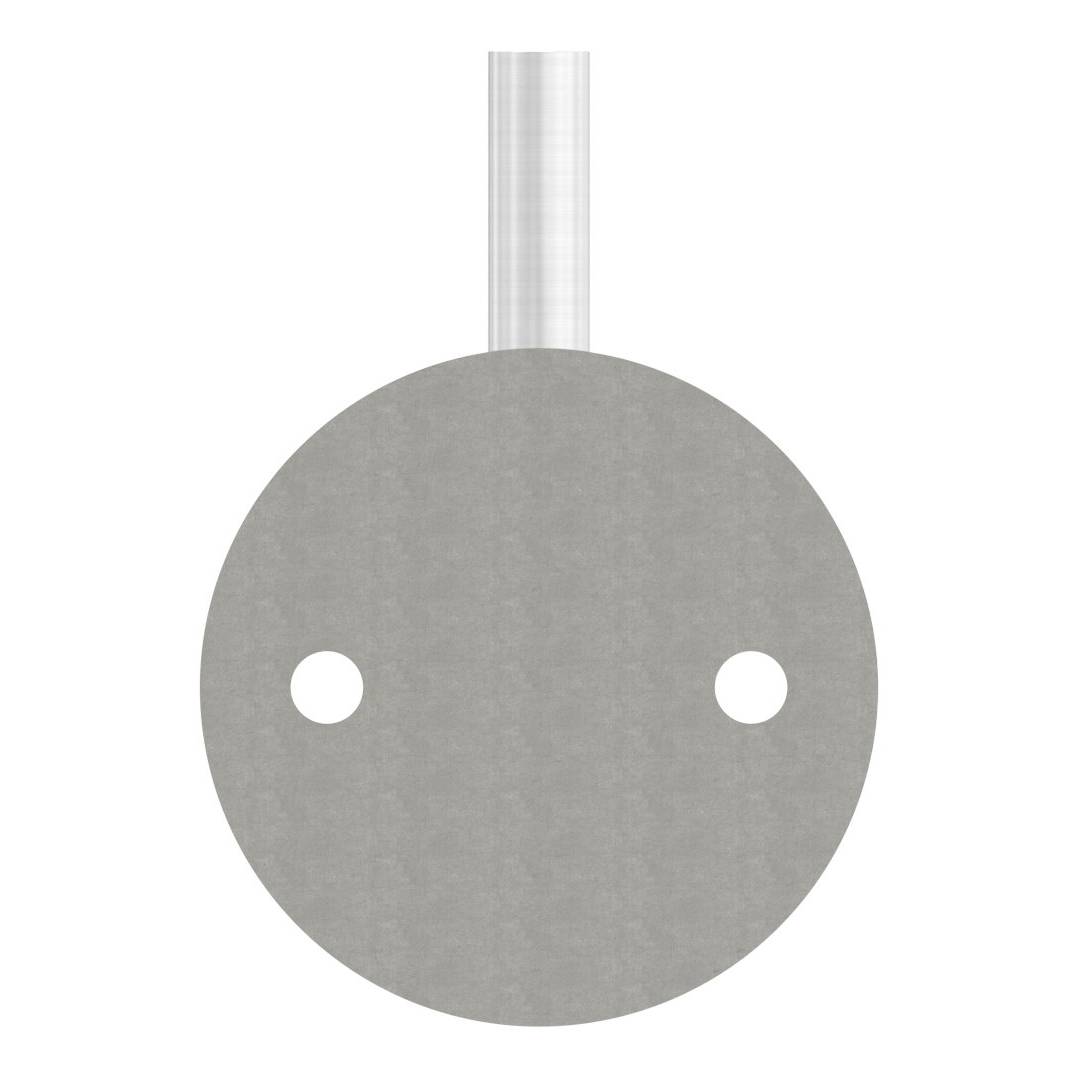

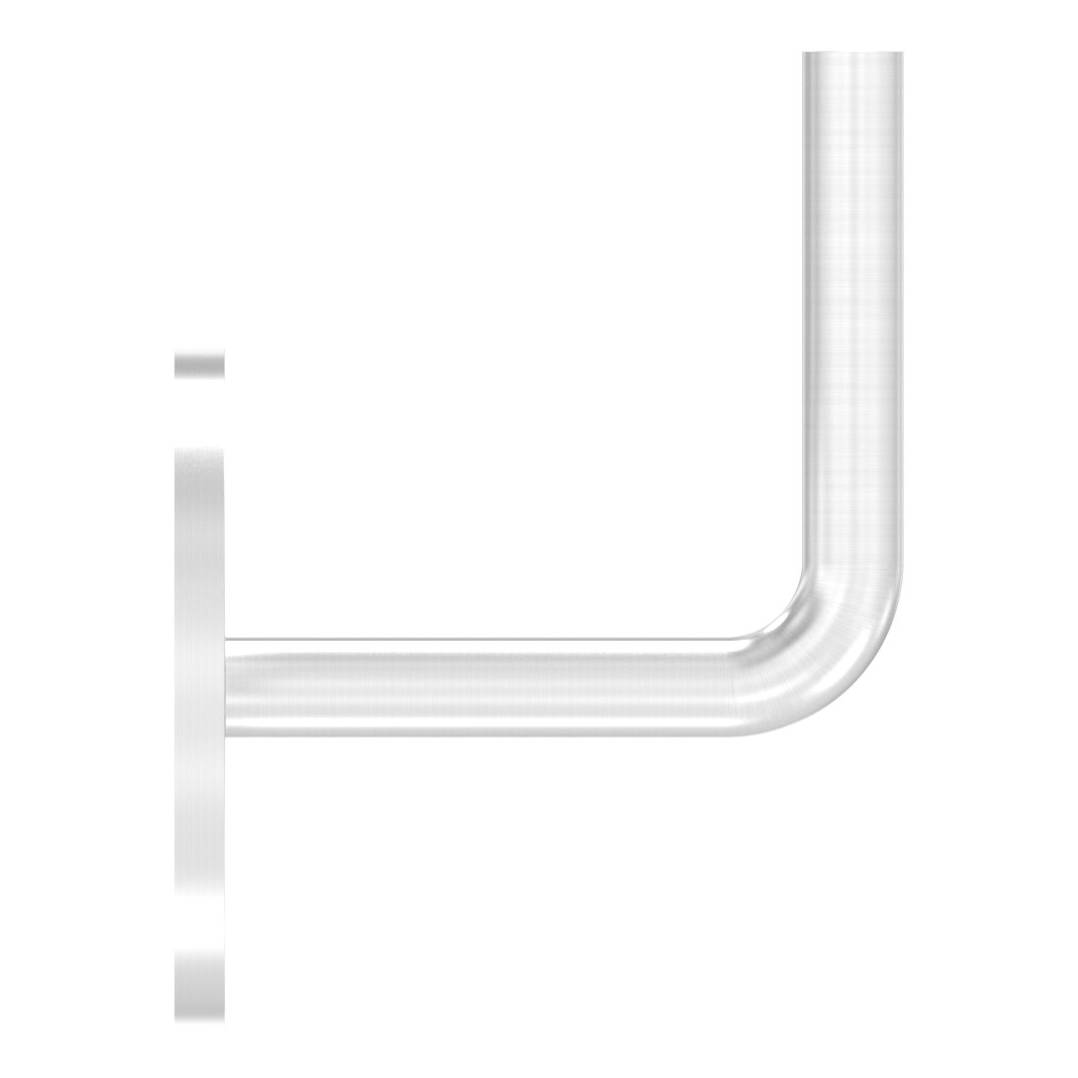

Handrail bracket for welding (round plate and bracket welded), AISI304
Art-Nr.50224-240-G-V|In stock·Delivery by21.Sep.

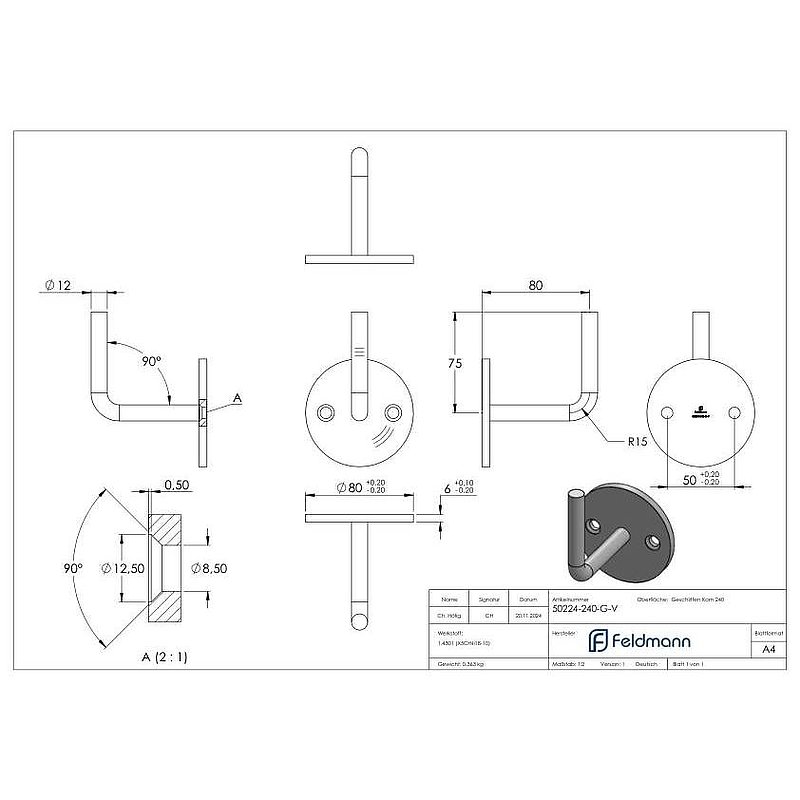

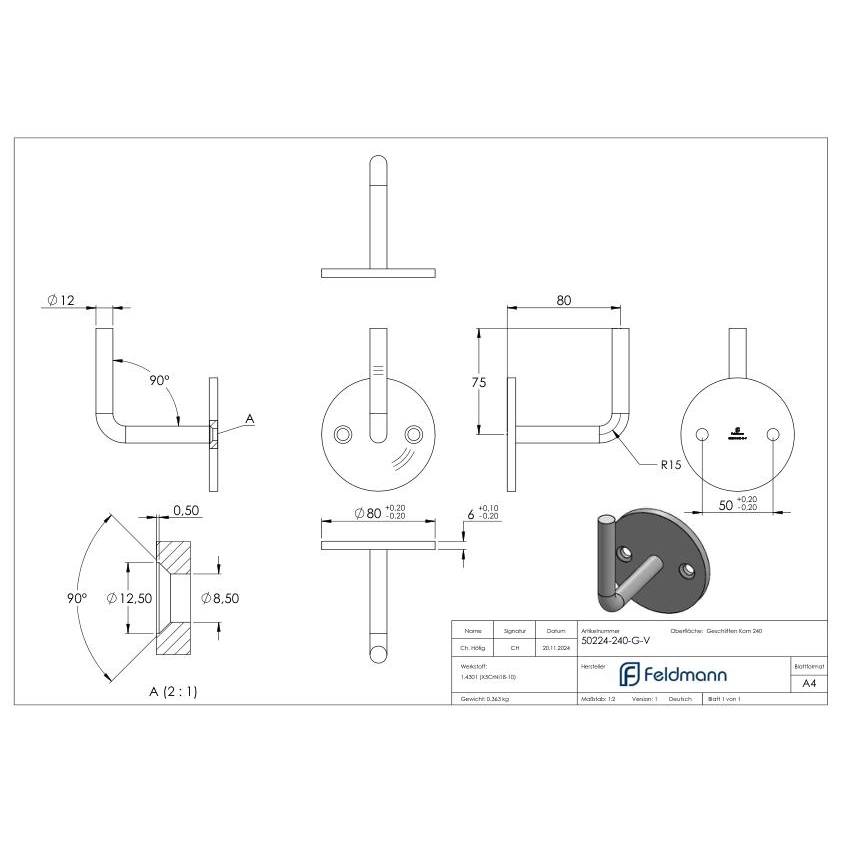

Handrail bracket for welding on the handrail, 80x6mm round plate and 12mm bracket, 2x 8.5mm countersunk holes for M6, wall distance to centre of bracket 80mm (round plate and bracket welded), AISI304
| Article number | 50224-240-G-V |
| Weight in Kg | 0.035 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Material |
V2A (1.4301) |
Handrail mounting |
zum Schweißen |
Number of mounting holes |
2 Bohrungen |
Cover rosette |
nein |
Cable feed-through |
nein |
Mounting location |
Wand |
Pin diameter |
12mm |
Surface |
geschliffen |
Handrail mount |
Ø 42,4mm,
Ø 48,3mm,
flach,Ø 33,7mm |
